55Вт (Первоначально 75Вт) усилитель мощности
Hugh Dean / Rod Elliott (ESP)
This is a contributed project from Hugh Dean in Melbourne, Australia. Hugh
has designed this amplifier for high quality and ease of construction.
To order boards, click to go to the ESP
Purchase form. Verify the price and postage, then open the order form,
fill it in and print it from your browser. Boards are sold only as a stereo
pair, and are supplied with component overlay, circuit diagram, bill of
materials and assembly and test instructions. These instructions are as an HTML
file on floppy disk.
Complete kits for this amplifier are available now from the
Printed Electronics web site. For those who do not want to have to
scrounge all the component suppliers to get the parts, this is definitely the
way to go. Details and all pricing are available from
Printed Electronics - as these may change over time I shall not
reproduce them here.
According to the latest information on the Printed Electronics web site, the amp
has been "downgraded" to 55W, which is still more than enough power for all but
the most inefficient loudspeakers. The maximum recommended supply voltage is
+/-35V, and it is recommended that this is not exceeded (the amp was previously
stated to use a +/-42V supply voltage). The drawings below have been duly
amended to reflect this change.
From the designer, Hugh Dean ...
The AKSA is a highly refined push pull solid state stereo amplifier of 55W
It was developed to overcome most of the sonic problems of transistor
amplifiers, and incorporates some highly innovative thinking from an
experienced designer. It delivers stunning resolution and a pure, sweet sound
at very low cost.
Both channels are assembled on their own individual 86mm x 75mm boards and
mounted on a single 300 x 75 mm ledged heatsink. It is powered from a 35 volt
positive and negative supply, and runs very efficiently in Class AB.
Features of this amplifier are its lack of intermodulation and depth of
stereo image, unusual for a solid state amplifier. To achieve the best
performance, a dual mono power supply is required - a schematic is supplied
with the boards.
To cap it off, the boards are designed so that it can be built up to 100W
per channel (into 4 ohms) with only minor changes to various components and
the addition of an extra pair of output transistors on each channel.
The complete unit including the power supply can be built up in an
afternoon in a suitable case.
The circuit diagram for the amp is shown in Figure 1. As can
be seen, it is not a complicated amplifier, and all components (excluding power
supply) fit onto a single board.

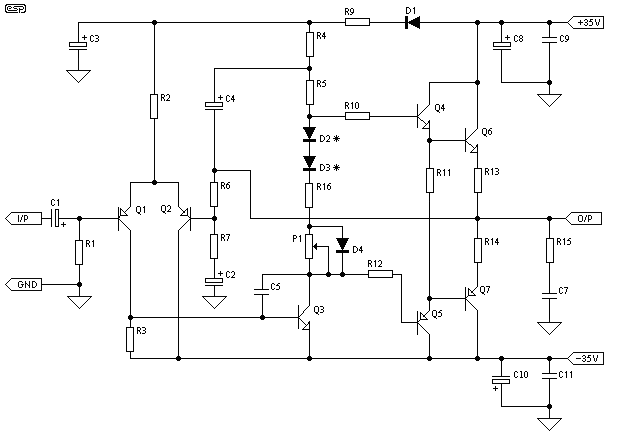

Figure 1 - 75W Power Amplifier
Please Note - The schematic shown is conceptual only, at the request of the
designer. This has been done to protect the design from possible piracy, due to
the extremely good performance from what is (or appears to be) a simple circuit.
A full schematic with all component values and assembly instructions is
available with the circuit boards. Normally all ESP projects have complete
schematics, but this is not my intellectual property and I will always protect
the interests of my contributors.
* The pot (P1) is used to set quiescent current. This will normally
be adjusted to 100mA. No bias servo is used - instead, the diodes D2 and D3
(1N4148 types) are mounted so that they are in contact with the main heatsink.
These must have their leads insulated and be secured using Superglue to ensure
good thermal contact.
All diodes are 1N4148 or 1N914. Q3 should have a small TO-220 heatsink to
Apply power (preferably with 22 ohm safety resistors installed in series with
the +ve and -ve supply lines) with the pot P1 at minimum resistance - do NOT
connect a speaker at this time. Check for heating of any components, and ensure
that the voltage at the output is less than 1 Volt.
To adjust the bias current, reinstall the fuses, do not connect a speaker and
apply power. Wait for a few minutes for the amp to stabilise, then measure the
voltage across one of the 0.47 ohm output emitter resistors. Carefully adjust
P1 - when you read a voltage of 47mV, this equates to 100mA. Verify that the
output voltage is within about 100mV. After a few minutes (checking for heat in
the meantime), check the quiescent current again, and adjust as needed.
NOTE: Full schematic, bill of materials, assembly and test
instructions are included with each printed circuit board order.
wiring must be performed by a qualified electrician - Do not attempt the
power supply unless suitably qualified. Faulty mains wiring may result in
death or serious injury.
The amp can be operated as a stereo pair form a single supply
as shown in Figure 2. Depending on your needs, this will often be quite
adequate. Note the capacitor and resistor (R1 and C1) across the mains switch.
The capacitor must be rated for at least the full AC supply voltage (i.e. 120V
or 240V AC), and all wiring (including the 100 ohm resistor) should be well
insulated to prevent accidental contact to the chassis or a finger. Please read
disclaimer for further suitable warnings about mains wiring.

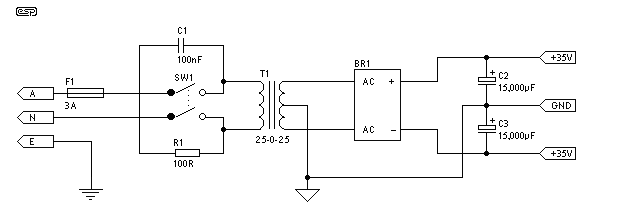

Figure 2 - Single Power Supply
A better solution is to use a "dual-mono" supply. This shares
one transformer, but uses two bridge rectifiers and two sets of filter
capacitors. This arrangement minimises any interaction between the amps, and is
shown in Figure 3. This supply is virtually identical to the one I presented as
Project 04 except for the voltage. Two other differences will be seen if
the two are compared - My original supply has an inbuilt "earth-loop breaker"
circuit, and this one has an RC "snubber" circuit across the mains switch.
Either of these can be applied on either power supply as required.

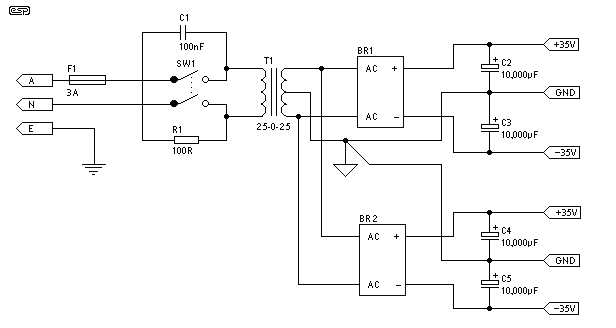

Figure 3 - Dual-Mono Power Supply
For both supplies, I suggest a 300VA transformer and 35A bridge rectifiers
for best regulation. For 115V countries, the fuse (F1) should be 6A, and in all
cases a slow blow fuse is required because of the inrush current of the
Like the supply in Project 04, the supply voltage can be expected to be
higher than that quoted at no load, and less at full load. This is entirely
normal, and is due to the regulation of the transformer. For more information
on this topic, see
Project 4. In some cases, it will not be possible to obtain the rated power
if the transformer is not adequately rated.
